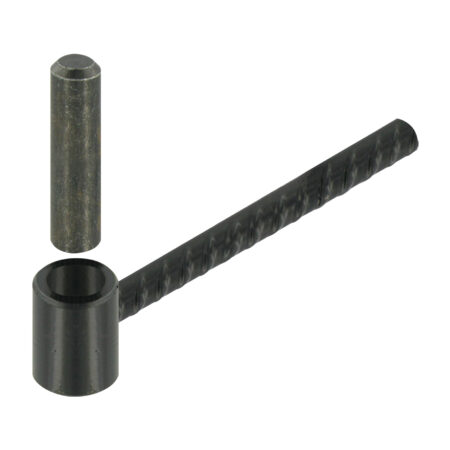

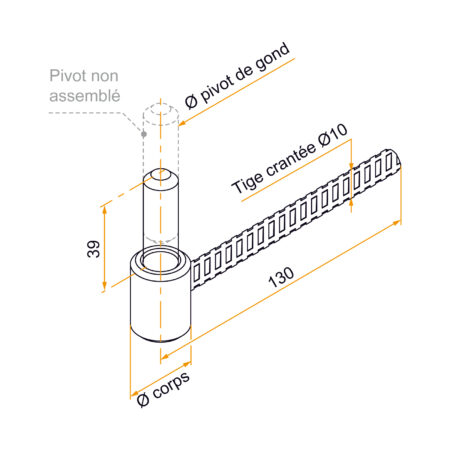

Chemical-seal hinge – L.130
Références
SKU | Finishing stage | Ø hinge pivot | Ø body | Pkg | Delay (d) |
---|---|---|---|---|---|
GDA003N53 | 9005-30% | 14 | 24 | 25 | 14 |
GDA003Z53 | Zn+9005-30% | 14 | 24 | 25 | 14 |
GDA003Z68 | Zn+9016-80% | 14 | 24 | 25 | 21 |
GDA003ZB | Zn | 14 | 24 | 25 | 14 |
GDA004N53 | 9005-30% | 16 | 26 | 25 | 14 |
GDA004Z53 | Zn+9005-30% | 16 | 26 | 25 | 21 |
GDA004ZB | Zn | 16 | 26 | 25 | 21 |
Information
Commentaire
Made of steel
Zn hinge body on all models for increased corrosion resistance
Notched steel wire rod with: a chemical composition allowing for a robust and Aesthetic design weld between the rod and the hinge body
High mechanical strength (Rm)
Zn hinge body on all models for increased corrosion resistance
Notched steel wire rod with: a chemical composition allowing for a robust and Aesthetic design weld between the rod and the hinge body
High mechanical strength (Rm)
Astuce
For drilling templates, please refer to the index.
