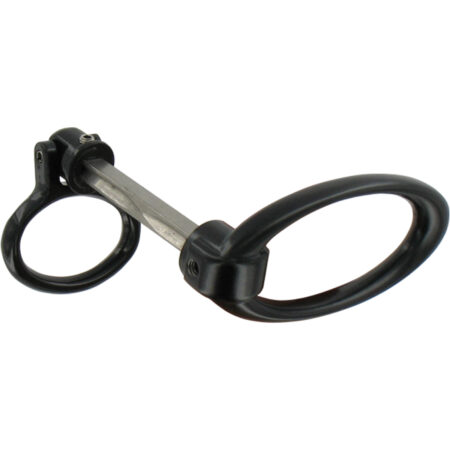

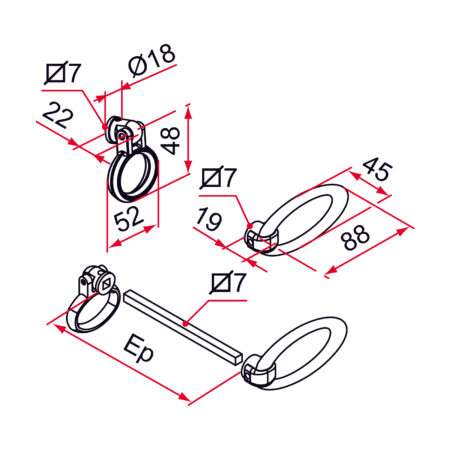

Anneau articulé et anneau fixe Multiréverso avec carré de 7
Références
Référence | Ep | Matériau du carré | Finition | Cdt | Délai (j) |
---|---|---|---|---|---|
CG392103 | 55 à 60 | acier | 9005-80% | 1 | 7 |
CG391103 | 55 à 60 | acier | 9016-80% | 1 | 7 |
CG3XX103 | 55 à 60 | acier |
![]() |
1 | 21 |
CG392101 | 55 à 60 | inox | 9005-80% | 1 | 7 |
CG391101 | 55 à 60 | inox | 9016-80% | 1 | 7 |
CG3XX101 | 55 à 60 | inox |
![]() |
1 | 21 |
CG392104 | 85 à 90 | acier | 9005-80% | 1 | 7 |
CG391104 | 85 à 90 | acier | 9016-80% | 1 | 7 |
CG3XX104 | 85 à 90 | acier |
![]() |
1 | 21 |
CG392102 | 85 à 90 | inox | 9005-80% | 1 | 7 |
CG391102 | 85 à 90 | inox | 9016-80% | 1 | 7 |
CG3XX102 | 85 à 90 | inox |
![]() |
1 | 21 |
Informations
Commentaire
Anneaux en aluminium
Livré avec carré de 7 mm en acier ou inox et clé de montage
Livré avec carré de 7 mm en acier ou inox et clé de montage

Astuce
Carré acier recoupable sur toute sa longueur. Carré Inox recoupable dans la limite de la forme anti-glissement.
