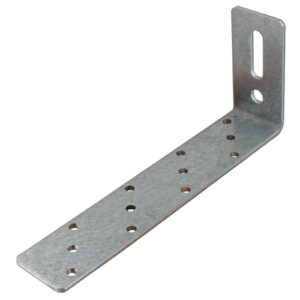

Ribbed fastening angle bracket – 3 sides – P1 = 40

Access the presentation

Références

SKU Finishing stage P2 H x L Pkg Delay (d)
171500 galvanized 30 80×60 200 21
171510 galvanized 40 80×70 200 21
171520 galvanized 50 80×80 200 21
171530 galvanized 60 80×90 150 21
171540 galvanized 70 80×100 150 21
171550 galvanized 80 80×110 150 21
171560 galvanized 90 80×120 150 21
171570 galvanized 100 80×130 150 21
171580 galvanized 110 80×140 100 21
171590 galvanized 120 80×150 100 21
171600 galvanized 130 80×160 100 21
171610 galvanized 140 80×170 100 21
171620 galvanized 150 80×180 100 21
171630 galvanized 160 80×190 100 21
171640 galvanized 170 80×200 100 21
Technical specifications

Information

Comment

Made of treated steel.

Conform with DTU 36.5 Standard, April 2010.
Tip

Tip

Minimum order quantity 5000 assorted pieces, factory lead time 3 weeks, for more dimensions, please contact us.

The number of Ø 4.5 mm holes varies depending on the angle bracket model.
