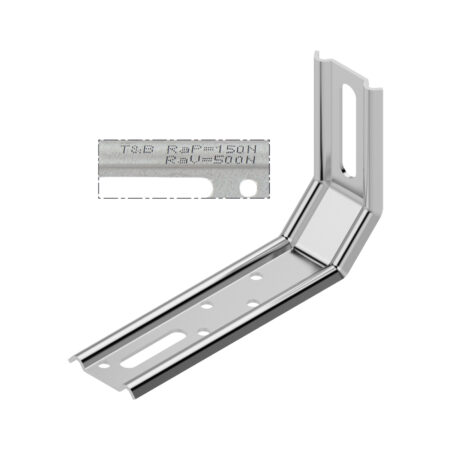

Ribbed fastening angle bracket – 3 sides – P1 = 30

Access the presentation

Références

SKU Finishing stage P2 H x L Pkg Delay (d)
171300 galvanized 30 70×50 200 21
171310 galvanized 40 70×60 200 21
171320 galvanized 50 70×70 200 21
171330 galvanized 60 70×80 200 21
171340 galvanized 70 70×90 150 21
171350 galvanized 80 70×100 150 21
171360 galvanized 90 70×110 150 21
171370 galvanized 100 70×120 150 21
171380 galvanized 110 70×130 100 21
171390 galvanized 120 70×140 100 21
171400 galvanized 130 70×150 100 21
171410 galvanized 140 70×160 100 21
171420 galvanized 150 70 x170 100 21
171430 galvanized 160 70×180 100 21
171440 galvanized 170 70 x 190 100 21
171450 galvanized 180 70×200 100 21
Technical specifications

Information

Comment

Made of treated steel.

Conform with DTU 36.5 Standard, April 2010.
Tip

Tip

Minimum order quantity 5000 assorted pieces, factory lead time 3 weeks, for more dimensions, please contact us.

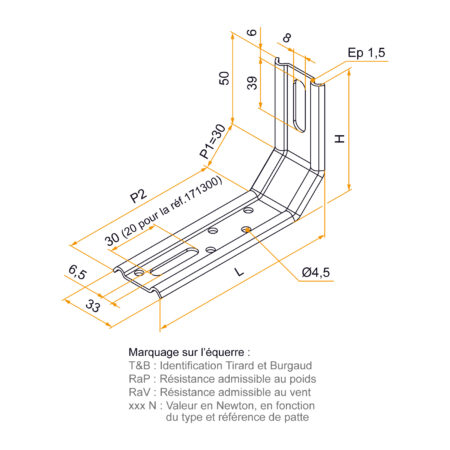

The number of Ø 4.5 mm holes varies depending on the angle bracket model.
