The accessory that enhances your style

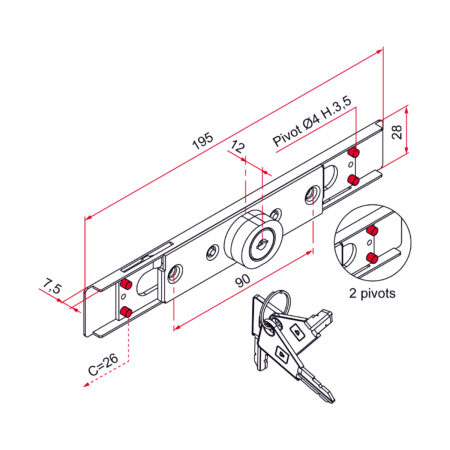

Security cylinder lock for blade – thickness 13 to 15mm – 2 short pivot – H.3,5 – AA40

Access the presentation

Références

SKU Finishing stage Material Pkg Delay (d)
AA192004 9005-30% steel 1 7
AA191004 9016-80% steel 1 7
AA115004 NCS 2005 Y40R (beige)-80% steel 1 7
AA180004 8019-80% steel 1 7
AA170004 7035-80% steel 1 7
AA114004 Zn steel 1 7
AA292004 9005-30% brass 1 7
AA291004 9016-80% brass 1 7
AA215004 NCS 2005 Y40R (beige)-80% brass 1 14
AA280004 8019-80% brass 1 14
AA270004 7035-80% brass 1 14
Technical specifications

Information

Commentaire

Drive pivots: Ø4 mm

With fastening screws for counterplate
Astuce

Astuce

Possibility to be half-open : add S to the end of the product number

Downloads

Click on the document name to download it
