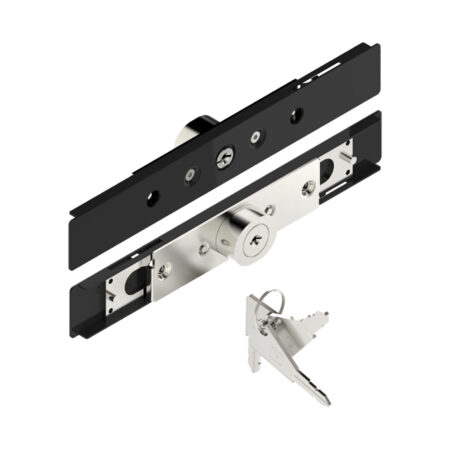

Security cylinder lock for blade – thickness 13 to 15mm – 1 short pivot – H.3,5 – AA40

Access the presentation

Références

SKU Finishing stage Material Pkg Delay (d)
AA192003 9005-30% steel 1 7
AA191003 9016-80% steel 1 7
AA115003 NCS 2005 Y40R (beige)-80% steel 1 7
AA180003 8019-80% steel 1 7
AA170003 7035-80% steel 1 7
AA114003 Zn steel 1 7
AA292003 9005-30% brass 1 7
AA291003 9016-80% brass 1 7
AA215003 NCS 2005 Y40R (beige)-80% brass 1 14
AA280003 8019-80% brass 1 14
AA270003 7035-80% brass 1 14
Technical specifications

Information

Commentaire

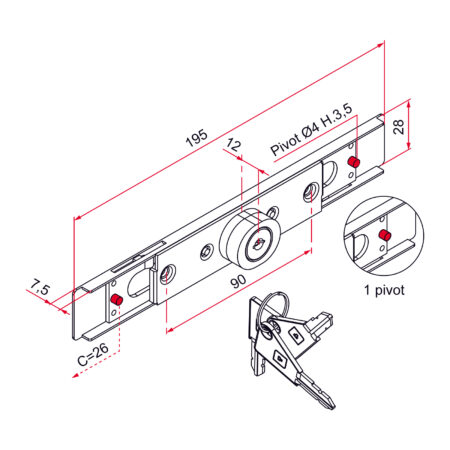

Drive pivots: Ø4 mm

With fastening screws for counterplate
Astuce

Astuce

Possibility to be half-open : add S to the end of the product number
