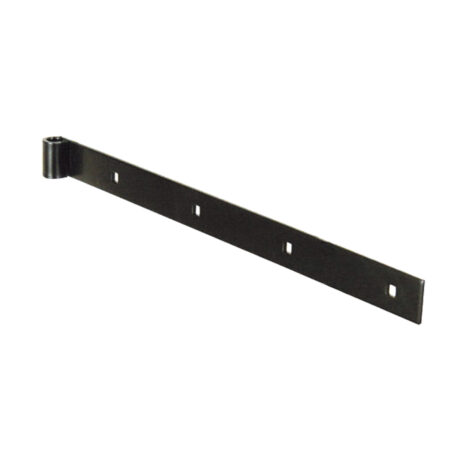

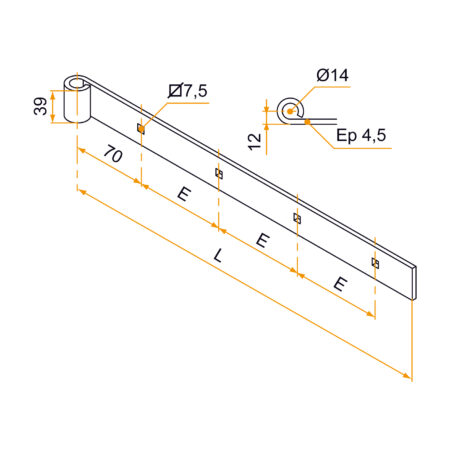

Straight strap hinge – square end – Ø14 – 39×4.5 – 7.5 mm square holes
Références
SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
---|---|---|---|---|---|---|
1PD92582 | 9005-30% | 300 | 3 | 95 | 12 | 21 |
1PD92690 | 9005-30% | 350 | 3 | 115 | 12 | 21 |
1PD92583 | 9005-30% | 400 | 4 | 95 | 12 | 21 |
1PD92691 | 9005-30% | 450 | 4 | 115 | 12 | 21 |
1PD92584 | 9005-30% | 500 | 5 | 95 | 12 | 21 |
1PD92692 | 9005-30% | 550 | 5 | 115 | 12 | 21 |
1PD92585 | 9005-30% | 600 | 6 | 95 | 12 | 21 |
1PD92586 | 9005-30% | 700 | 7 | 95 | 6 | 21 |
1PD92587 | 9005-30% | 800 | 8 | 95 | 6 | 21 |
1PD92588 | 9005-30% | 900 | 9 | 95 | 6 | 21 |
1PD92589 | 9005-30% | 1000 | 10 | 95 | 6 | 14 |
1PD92590 | 9005-30% | 1200 | 12 | 95 | 6 | 14 |
Information
Commentaire
Made of steel
