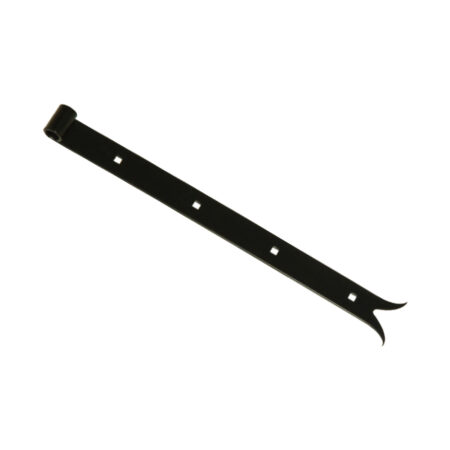

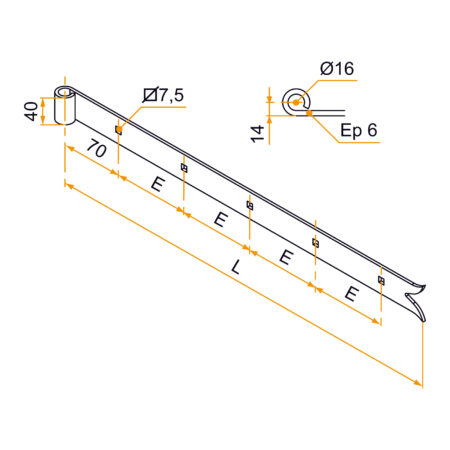

Straight strap hinge – fish tail – Ø16 – 40×6 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 1PD92524 | 9005-30% | 300 | 3 | 85 | 12 | 21 |
| 1PD92525 | 9005-30% | 350 | 3 | 110 | 12 | 21 |
| 1PD92526 | 9005-30% | 400 | 3 | 135 | 12 | 21 |
| 1PD92527 | 9005-30% | 450 | 4 | 106.7 | 12 | 21 |
| 1PD92528 | 9005-30% | 500 | 4 | 123,3 | 6 | 21 |
| 1PD92529 | 9005-30% | 550 | 4 | 140 | 6 | 21 |
| 1PD92530 | 9005-30% | 600 | 4 | 156,7 | 6 | 21 |
| 1PD92531 | 9005-30% | 650 | 5 | 130 | 6 | 21 |
| 1PD92532 | 9005-30% | 700 | 5 | 142,5 | 6 | 21 |
| 1PD92533 | 9005-30% | 800 | 5 | 167,5 | 6 | 14 |
| 1PD92534 | 9005-30% | 900 | 5 | 192,5 | 6 | 21 |
| 1PD92535 | 9005-30% | 1000 | 5 | 217,5 | 6 | 14 |
| 1PD92536 | 9005-30% | 1200 | 6 | 214 | 3 | 14 |
| 1PD92817 | 9005-30% | 1500 | 6 | 274 | 3 | 21 |
Information
Commentaire
Made of steel
