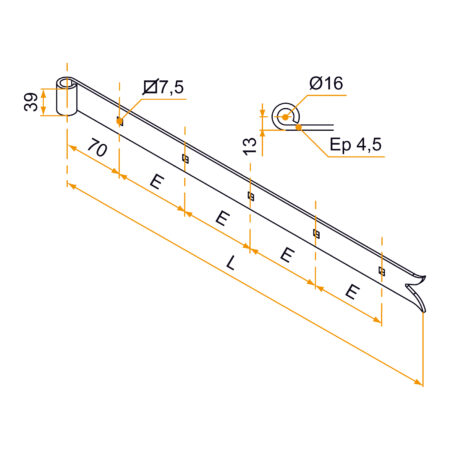

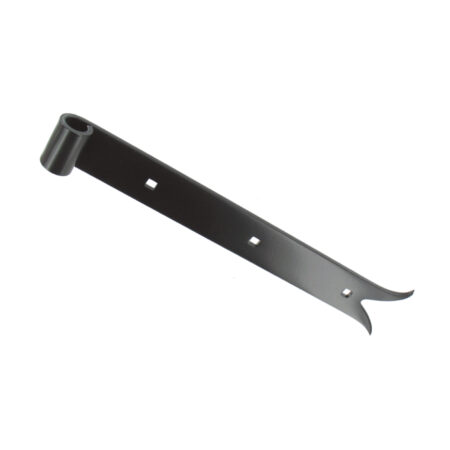

Straight strap hinge – fish tail – Ø16 – 39×4.5 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 1PD92416 | 9005-30% | 315 | 3 | 95 | 12 | 21 |
| 1PD12095 | Zn | 315 | 3 | 95 | 12 | 21 |
| 1PD92793 | 9005-30% | 350 | 3 | 105 | 12 | 14 |
| 1PD92417 | 9005-30% | 410 | 4 | 95 | 12 | 21 |
| 1PD12096 | Zn | 410 | 4 | 95 | 12 | 21 |
| 1PD92794 | 9005-30% | 450 | 4 | 105 | 12 | 21 |
| 1PD92418 | 9005-30% | 510 | 5 | 95 | 12 | 14 |
| 1PD12097 | Zn | 510 | 5 | 95 | 12 | 21 |
| 1PD92795 | 9005-30% | 550 | 5 | 105 | 12 | 21 |
| 1PD92419 | 9005-30% | 600 | 6 | 95 | 12 | 14 |
| 1PD12098 | Zn | 600 | 6 | 95 | 12 | 21 |
| 1PD92796 | 9005-30% | 650 | 6 | 105 | 12 | 21 |
| 1PD92420 | 9005-30% | 700 | 7 | 95 | 6 | 21 |
| 1PD12099 | Zn | 700 | 7 | 95 | 6 | 21 |
| 1PD92421 | 9005-30% | 800 | 8 | 95 | 6 | 21 |
| 1PD12100 | Zn | 800 | 8 | 95 | 6 | 21 |
| 1PD92422 | 9005-30% | 900 | 9 | 95 | 6 | 21 |
| 1PD92447 | 9005-30% | 1000 | 10 | 95 | 6 | 21 |
| 1PD12101 | Zn | 1000 | 10 | 95 | 6 | 21 |
| 1PD92448 | 9005-30% | 1200 | 12 | 95 | 6 | 21 |
| 1PD12102 | Zn | 1200 | 12 | 95 | 6 | 21 |
Information
Commentaire
Made of steel
