- Straight strap hinge – fish tail end – 34×4.5 mm

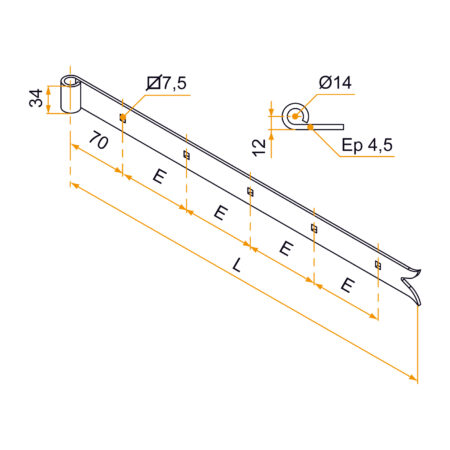

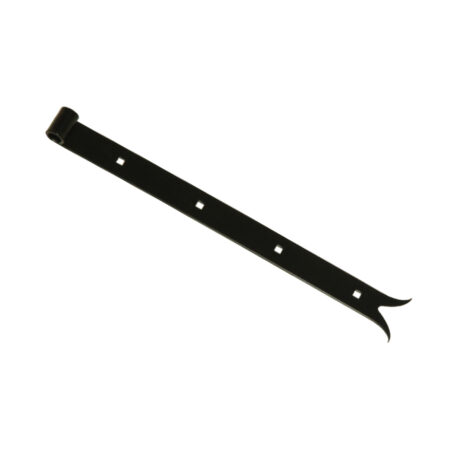

Straight strap hinge – fish tail – Ø14 – 34×4.5 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 1PD92459 | 9005-30% | 310 | 3 | 95 | 12 | 21 |
| 1PD92615 | 9005-30% | 350 | 3 | 105 | 12 | 21 |
| 1PD12113 | Zn | 310 | 4 | 105 | 12 | 21 |
| 1PD92460 | 9005-30% | 410 | 4 | 95 | 12 | 14 |
| 1PD12114 | Zn | 410 | 5 | 95 | 12 | 21 |
| 1PD92616 | 9005-30% | 450 | 4 | 105 | 12 | 21 |
| 1PD92461 | 9005-30% | 510 | 5 | 95 | 12 | 14 |
| 1PD12115 | Zn | 510 | 5 | 105 | 12 | 21 |
| 1PD92617 | 9005-30% | 550 | 5 | 105 | 12 | 21 |
| 1PD92264 | 9005-30% | 600 | 6 | 95 | 12 | 14 |
| 1PD12032 | Zn | 600 | 6 | 95 | 12 | 21 |
| 1PD92266 | 9005-30% | 700 | 7 | 95 | 12 | 14 |
| 1PD12033 | Zn | 700 | 7 | 95 | 12 | 21 |
| 1PD92268 | 9005-30% | 800 | 8 | 95 | 12 | 14 |
| 1PD12034 | Zn | 800 | 8 | 95 | 12 | 21 |
| 1PD92462 | 9005-30% | 1000 | 10 | 95 | 6 | 21 |
| 1PD12116 | Zn | 1000 | 10 | 95 | 6 | 21 |
| 1PD92463 | 9005-30% | 1200 | 12 | 95 | 6 | 21 |
| 1PD12117 | Zn | 1200 | 12 | 95 | 6 | 21 |
Information
Commentaire
Made of steel
