Hardware Designer & Manufacturer

The accessory that enhances your style

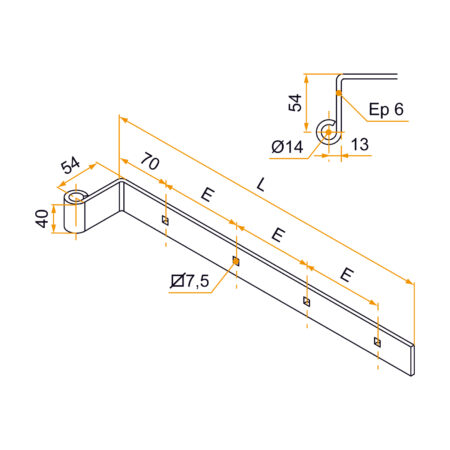

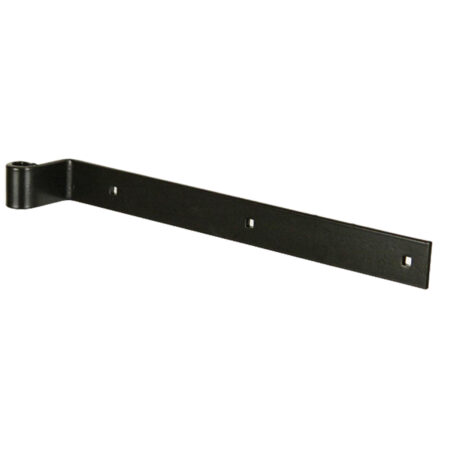

Bent Straight strap hinge – square end – Ø14 – 40×6 – 7.5 mm square holes – H bending

Access the presentation

Références

SKU Finishing stage L No. of holes CD Pkg Delay (d)
1PD92573 9005-30% 300 3 105 12 21
1PD92346 9005-30% 350 3 130 12 21
1PD92347 9005-30% 400 3 155 12 21
1PD92348 9005-30% 450 4 120 12 21
1PD92349 9005-30% 500 4 137 12 21
1PD92350 9005-30% 550 4 153 6 21
1PD92351 9005-30% 600 4 170 6 14
1PD92352 9005-30% 650 5 140 6 21
1PD92353 9005-30% 700 5 153 6 21
1PD92354 9005-30% 800 5 178 6 14
1PD92574 9005-30% 900 5 203 6 21
1PD92575 9005-30% 1000 5 228 6 21
1PD92576 9005-30% 1200 6 222 3 14
Technical specifications

Information

Astuce

Astuce

For pairing hinges, please refer to the page “Hinges for Double Shutters” (See table of contents)

Commentaire

Made of steel

Downloads

Click on the document name to download it
