- Straight strap hinge – square end – 34×4.5 mm

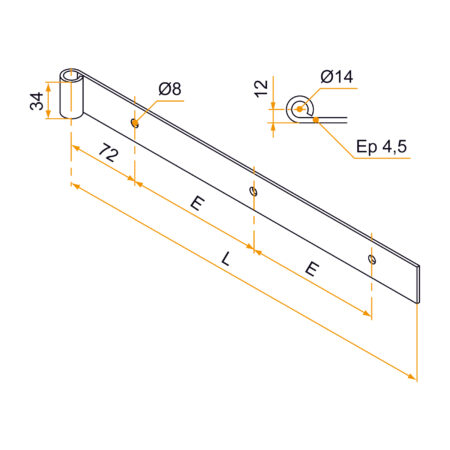

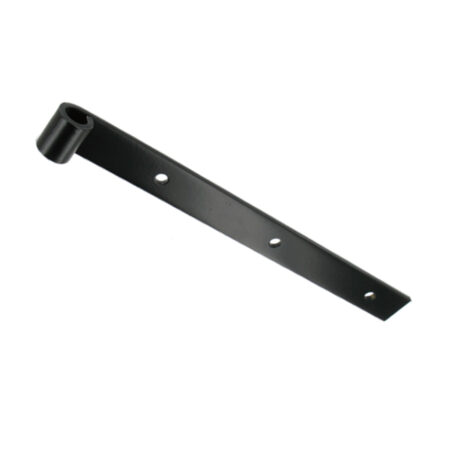

Straight strap hinge – square end – Ø14 – 34×4.5 – 8mm round hole
Références
SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
---|---|---|---|---|---|---|
149120 | 9005-30% | 300 | 3 | 98 | 12 | 21 |
148120 | Zn+9005-30% | 300 | 3 | 98 | 12 | 21 |
150120 | Zn | 300 | 3 | 98 | 12 | 21 |
150122 | Zn | 350 | 3 | 118 | 12 | 21 |
149124 | 9005-30% | 400 | 4 | 98 | 12 | 21 |
148124 | Zn+9005-30% | 400 | 4 | 98 | 12 | 21 |
150124 | Zn | 400 | 4 | 98 | 12 | 14 |
150126 | Zn | 450 | 4 | 113 | 12 | 21 |
149128 | 9005-30% | 500 | 4 | 130 | 12 | 21 |
148128 | Zn+9005-30% | 500 | 4 | 130 | 12 | 21 |
150128 | Zn | 500 | 4 | 130 | 12 | 14 |
150130 | Zn | 550 | 4 | 146 | 12 | 21 |
149132 | 9005-30% | 600 | 5 | 123 | 12 | 21 |
148132 | Zn+9005-30% | 600 | 5 | 123 | 12 | 21 |
150132 | Zn | 600 | 5 | 123 | 12 | 14 |
150134 | Zn | 650 | 5 | 146 | 12 | 21 |
149136 | 9005-30% | 700 | 5 | 147 | 12 | 21 |
148136 | Zn+9005-30% | 700 | 5 | 147 | 12 | 21 |
150136 | Zn | 700 | 5 | 147 | 12 | 21 |
149138 | 9005-30% | 800 | 6 | 137 | 12 | 21 |
148138 | Zn+9005-30% | 800 | 6 | 137 | 12 | 21 |
150138 | Zn | 800 | 6 | 137 | 12 | 14 |
Information
![Astuce](https://www.tirard-burgaud.com/content/uploads/catalogue/ETI00000002en-picto-astuce.png)
Astuce
Available in other finishing stage.
Please contact us.
Please contact us.
Commentaire
Made of steel
