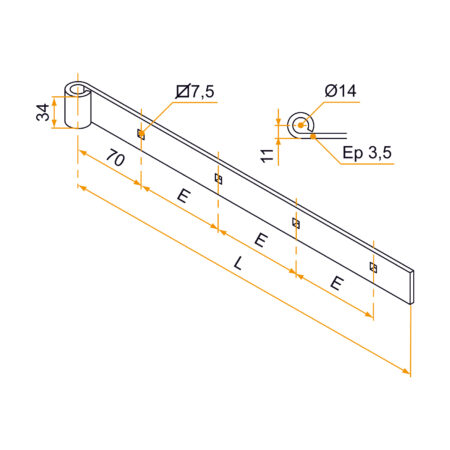

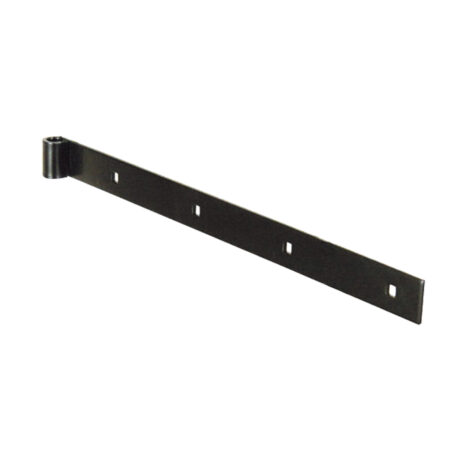

Straight strap hinge – square end – Ø14 – 34×3.5 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 1PD92271 | 9005-30% | 300 | 3 | 95 | 12 | 14 |
| 1PD12026 | Zn | 300 | 3 | 95 | 12 | 21 |
| 1PD92630 | 9005-30% | 350 | 3 | 115 | 12 | 21 |
| 1PD92272 | 9005-30% | 400 | 4 | 95 | 12 | 14 |
| 1PD12027 | Zn | 400 | 4 | 95 | 12 | 21 |
| 1PD92631 | 9005-30% | 450 | 4 | 115 | 12 | 21 |
| 1PD92273 | 9005-30% | 500 | 5 | 95 | 12 | 14 |
| 1PD12028 | Zn | 500 | 5 | 95 | 12 | 21 |
| 1PD92632 | 9005-30% | 550 | 5 | 115 | 12 | 21 |
| 1PD92274 | 9005-30% | 600 | 6 | 95 | 12 | 14 |
| 1PD12029 | Zn | 600 | 6 | 95 | 12 | 21 |
| 1PD92276 | 9005-30% | 700 | 7 | 95 | 12 | 14 |
| 1PD12030 | Zn | 700 | 7 | 95 | 12 | 21 |
| 1PD92278 | 9005-30% | 800 | 8 | 95 | 12 | 14 |
| 1PD12031 | Zn | 800 | 8 | 95 | 12 | 21 |
| 1PD92450 | 9005-30% | 1000 | 10 | 95 | 12 | 21 |
| 1PD12104 | Zn | 1000 | 10 | 95 | 12 | 21 |
| 1PD92451 | 9005-30% | 1200 | 12 | 95 | 12 | 21 |
| 1PD12105 | Zn | 1200 | 12 | 95 | 12 | 21 |
Information
Commentaire
Made of steel
