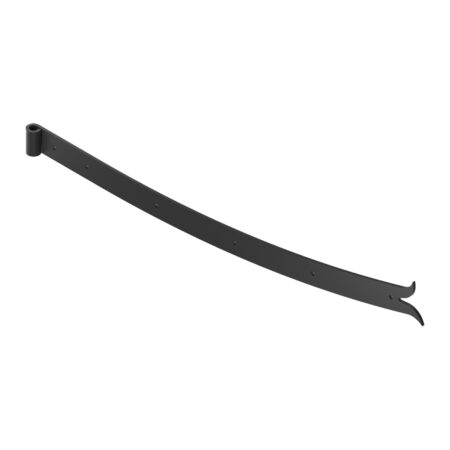

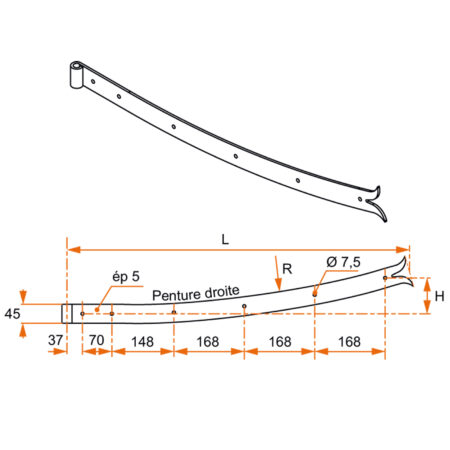

Curved T strap hinge – fish tail end – Ø14 – 45×5 – 7.5mm round holes
Références
| SKU | Finishing stage | L | Assembly direction | H/R | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 3118551 | Zn+9005-30% | 490 | LEFT | 61/700 | 10 | SD |
| 3118541 | Zn+9005-30% | 490 | right | 61/700 | 10 | SD |
| 3118531 | Zn+9005-30% | 490 | LEFT | 72/600 | 10 | SD |
| 311873 | Zn+9005-30% | 490 | right | 136/358 | 10 | SD |
| 311872 | Zn+9005-30% | 490 | LEFT | 136/358 | 10 | SD |
| 311879 | Zn+9005-30% | 490 | right | 107/427 | 10 | SD |
| 311878 | Zn+9005-30% | 490 | RIGHT | 107/427 | 10 | SD |
| 3118631 | Zn+9005-30% | 660 | LEFT | 52/2010 | 10 | SD |
| 3118621 | Zn+9005-30% | 660 | right | 52/2010 | 10 | SD |
| 3118611 | Zn+9005-30% | 660 | LEFT | 66/1610 | 10 | SD |
| 3118601 | Zn+9005-30% | 660 | right | 66/1610 | 10 | SD |
| 311877 | Zn+9005-30% | 660 | LEFT | 81/1313 | 10 | SD |
| 311876 | Zn+9005-30% | 660 | right | 81/1313 | 10 | SD |
| 311874 | Zn+9005-30% | 660 | LEFT | 102/1064 | 10 | SD |
| 311875 | Zn+9005-30% | 660 | right | 102/1064 | 10 | SD |
| 3118711 | Zn+9005-30% | 830 | LEFT | 69/2880 | 10 | SD |
| 3118701 | Zn+9005-30% | 830 | right | 69/2880 | 10 | SD |
| 3118691 | Zn+9005-30% | 830 | LEFT | 85/2320 | 10 | SD |
| 3118681 | Zn+9005-30% | 830 | right | 85/2320 | 10 | SD |
Information
Astuce
If you would like a T strap hinge with a different curve, please contact us.
