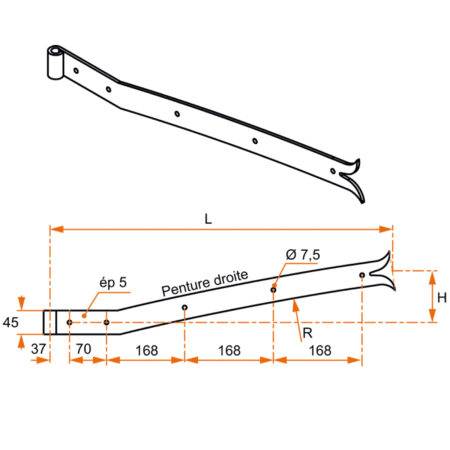

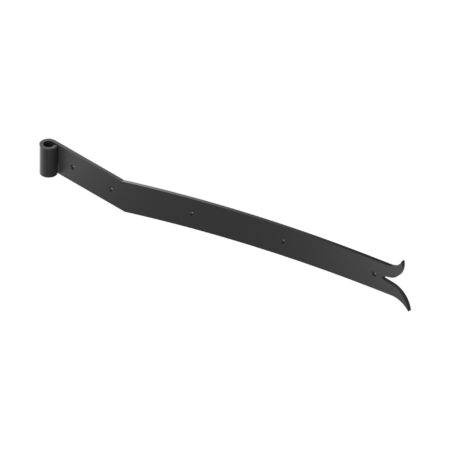

T strap hinge – fish tail end – Ø14 – 45×5 – 7.5 round holes – PLHC
Références
SKU | Finishing stage | L | Assembly direction | H/R | Pkg | Delay (d) |
---|---|---|---|---|---|---|
3118571 | Zn+9005-30% | 490 | LEFT | 93/2040 | 10 | SD |
3118561 | Zn+9005-30% | 490 | right | 93/2040 | 10 | SD |
311881 | Zn+9005-30% | 490 | LEFT | 122/1090 | 10 | SD |
311880 | Zn+9005-30% | 490 | right | 122/1090 | 10 | SD |
3118651 | Zn+9005-30% | 660 | LEFT | 90/5390 | 10 | SD |
3118641 | Zn+9005-30% | 660 | right | 90/5390 | 10 | SD |
311883 | Zn+9005-30% | 660 | LEFT | 107/3448 | 10 | SD |
311882 | Zn+9005-30% | 660 | right | 107/3448 | 10 | SD |
