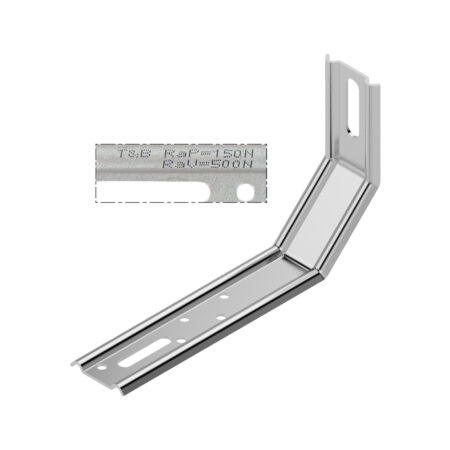

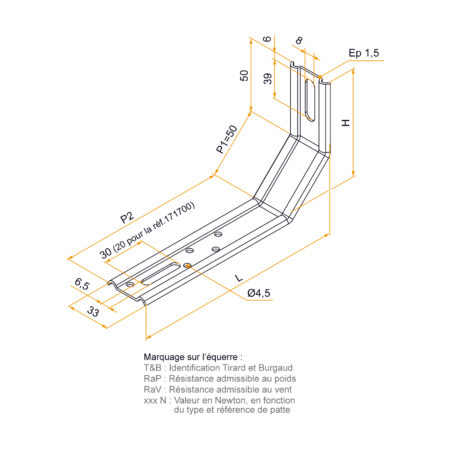

Ribbed fastening angle bracket – 3 sides – P1 = 50

Access the presentation

Références

SKU Finishing stage P2 H x L Pkg Delay (d)
171700 galvanized 30 85×65 200 21
171710 galvanized 40 85×75 200 21
171720 galvanized 50 85×85 200 21
171730 galvanized 60 85×95 150 21
171740 galvanized 70 85 x105 150 21
171750 galvanized 80 85×115 150 21
171760 galvanized 90 85×125 100 21
171770 galvanized 100 85×135 100 21
171780 galvanized 110 85×145 100 21
171790 galvanized 120 85×155 100 21
171800 galvanized 130 85×165 100 21
171810 galvanized 140 85×175 100 21
171820 galvanized 150 85×185 100 21
171830 galvanized 160 85×195 100 21
Technical specifications

Information

Commentaire

Made of treated steel.

Conform with DTU 36.5 Standard, April 2010.
Astuce

Astuce

Minimum order quantity 5000 assorted pieces, factory lead time 3 weeks, for more dimensions, please contact us.

The number of Ø 4.5 mm holes varies depending on the angle bracket model.
