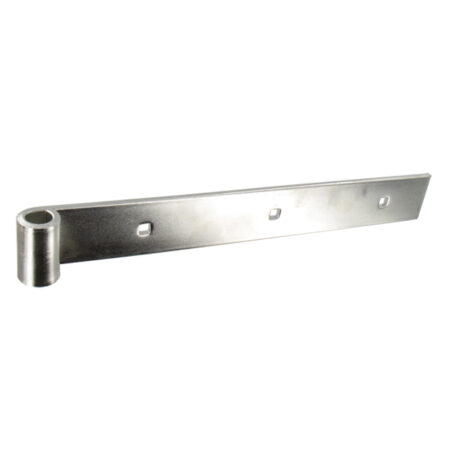

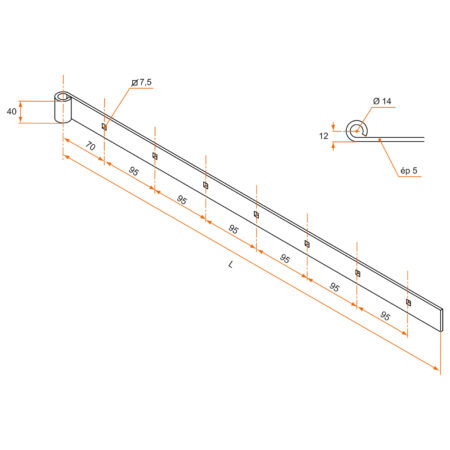

Straight strap hinge – square end – Ø14 – 40×5 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | Ø | Pkg | Delay (d) |
|---|---|---|---|---|---|
| I10090Q | polite | 300 | 14 | 6 | 21 |
| PDN007 | brut | 300 | 14 | 6 | 21 |
| I10100Q | polite | 400 | 14 | 6 | 21 |
| PDN008 | brut | 400 | 14 | 6 | 21 |
| I10110Q | polite | 500 | 14 | 6 | 21 |
| PDN009 | brut | 500 | 14 | 6 | 21 |
| I10120Q | polite | 600 | 14 | 6 | 21 |
| PDN010 | brut | 600 | 14 | 6 | 21 |
| I10130Q | polite | 700 | 14 | 6 | 21 |
| PDN011 | brut | 700 | 14 | 6 | 21 |
| I10060 | polite | 800 | 14 | 6 | 14 |
| PDN012 | brut | 800 | 14 | 6 | 21 |
| I10070 | polite | 1000 | 14 | 6 | 14 |
| PDN013 | brut | 1000 | 14 | 6 | 21 |
| I10080 | polite | 1200 | 14 | 6 | 21 |
| PDN014 | brut | 1200 | 14 | 6 | 21 |
| I10081 | polite | 1400 | 14 | 6 | 21 |
| PDN015 | brut | 1400 | 14 | 6 | 21 |
Information
Commentaire
Made of 316L marine grade stainless steel
