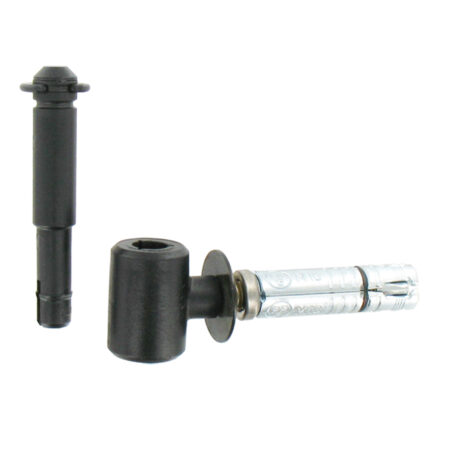

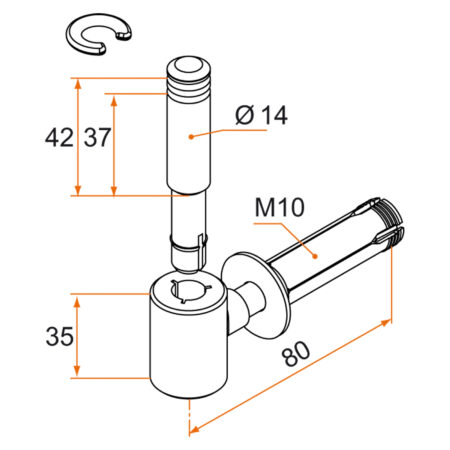

Hinge with expansion dowel – Ø14 pin – M.10xL.80 mm – composite
Références
SKU | Finishing stage | L | Ø | Pkg | Delay (d) |
---|---|---|---|---|---|
900625 | black | 80 | 14 | 50 | 14 |
800625 | white | 80 | 14 | 50 | 14 |
Information
Commentaire
Delivered with circlips.
Clip-on pin with treated steel insert.
Expansion dowel and assembled steel washer.
Clip-on pin with treated steel insert.
Expansion dowel and assembled steel washer.
