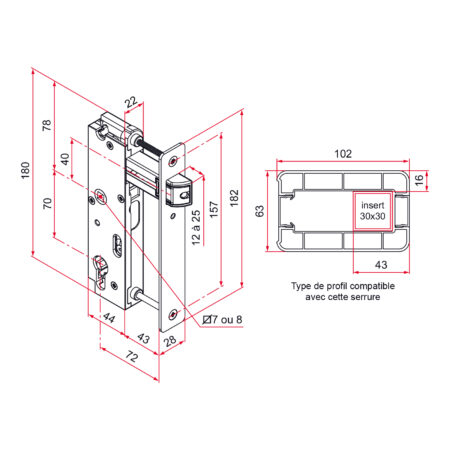

Set back lock with zamac recessed bolt – 72mm axis – square faceplate – for 30×30 mm frame – GK
Références
SKU | Finishing stage | Square spindle bar | Pkg | Delay (d) |
---|---|---|---|---|
GK492108 | 9005-80% | 7 | 1 | 7 |
GK491108 | 9016-80% | 7 | 1 | 14 |
GK401108 | brush | 7 | 1 | 7 |
GK4XX108 |
![]() |
7 | 1 | 21 |
GK492118 | 9005-80% | 8 | 1 | 7 |
GK491118 | 9016-80% | 8 | 1 | 14 |
GK401118 | brush | 8 | 1 | 7 |
GK4XX118 |
![]() |
8 | 1 | 21 |
Information
Commentaire

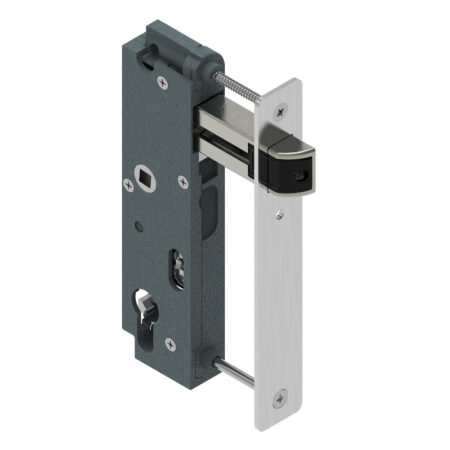

Composite lock case and 304 stainless steel strike plate.
Reversible.
Reversible.
![Astuce](https://www.tirard-burgaud.com/content/uploads/catalogue/ETI00000002en-picto-astuce.png)
Astuce
For the colored versions, only the faceplate is painted, the lock case is black.
