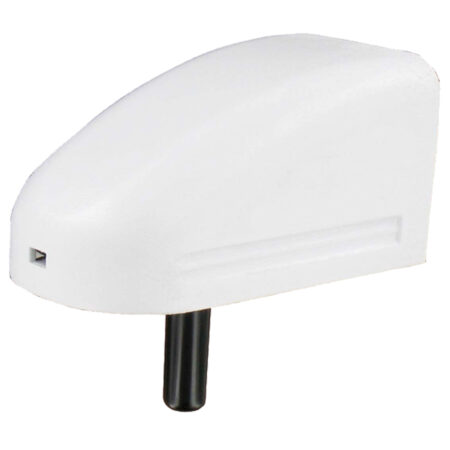

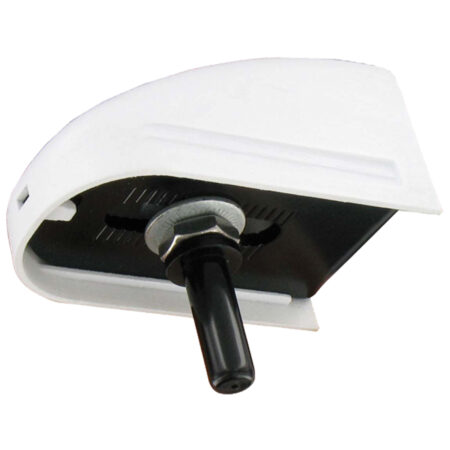

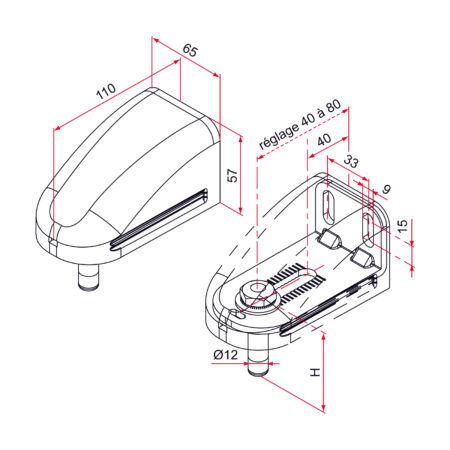

L-shaped hinge plate with composite fairing – H.57 – adjustable from 40 to 80 mm – Ø12 pivot, H.25 or 35 mm

Access the presentation

Références

SKU Finishing stage H Pkg Delay (d)
NA592003 black 25 10 7
NA591003 white 25 10 7
NA515003 beige 25 10 7
NA592001 black 25 20 7
NA591001 white 25 20 7
NA515001 beige 25 20 7
NA592004 black 35 10 7
NA591004 white 35 10 7
NA515004 beige 35 10 7
NA592002 black 35 20 7
NA591002 white 35 20 7
NA515002 beige 35 20 7
Technical specifications

Information

Commentaire

Hinge with zinc-coated + powder-coated steel base
Astuce

Astuce

Cdt /20:

Loose in a cardboard

1 pack of screws and bolts

1 pack of 20 plates

1 pack of 20 fairing (for the fairing version) + instructions.

Cdt/10:

1 individual pack (spare parts in a bag)

10 pack in a cardboard + instructions.
