Hardware Designer & Manufacturer

The accessory that enhances your style

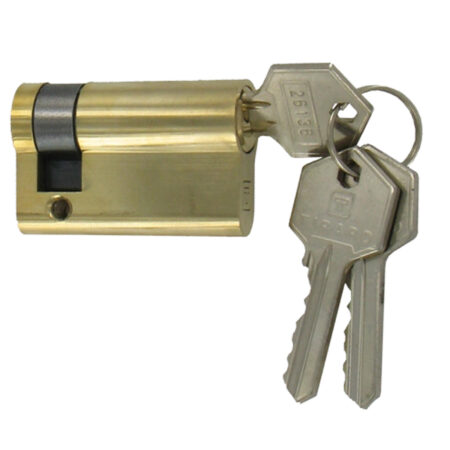

Standard half-cylinder

Access the presentation

Références

SKU Finishing stage L1 L2 Pkg Delay (d)
JJ201001 polite 10 30 1 7
JJ201002 polite 10 40 1 7
JJ201015 polite 10 45 1 7
JJ201003 polite 10 50 1 7
JJ201016 polite 10 55 1 7
JJ201004 polite 10 60 1 7
JJ201005 polite 10 70 1 7
JJ201001S polite 10 30 1 7
JJ201002S polite 10 40 1 7
JJ201003S polite 10 50 1 7
JJ201004S polite 10 60 1 7
JJ201005S polite 10 70 1 7
Technical specifications

Information

Commentaire

Made of brass

Stainless steel spring

Delivered with 3 keys
Astuce

Astuce

Possibility to be half-open : add S to the product number (2 key numbers 34512 / 53413).

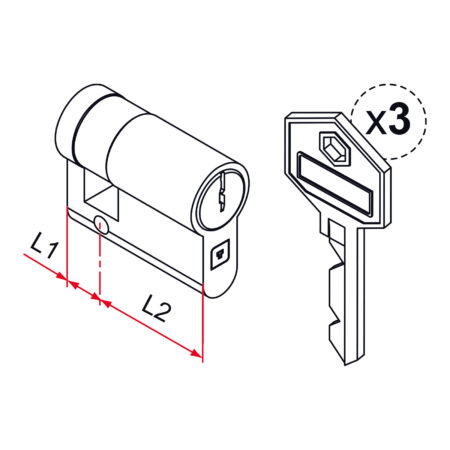

Determine the length of the cylinder according to the thickness of the lock supports, plates or holes.
