End caps, rings, heels, and sleeves
Introduction

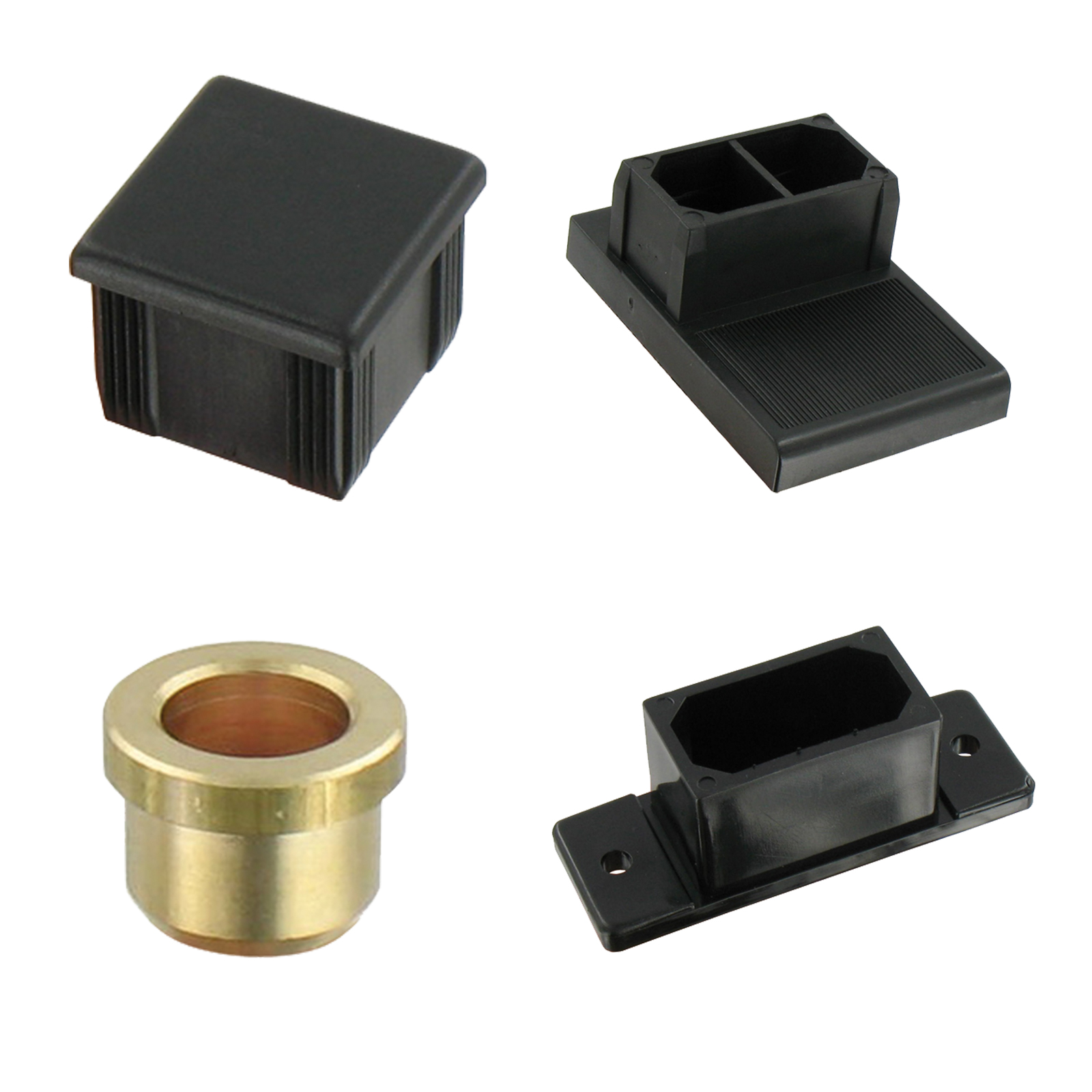

The drilled end caps are used to join the frame to the Ø12 hinges for standard-sized profiles. Plain end caps are used to block the profiles. End caps are available in aluminum, polyamide or cupro-aluminum. Rings are made of brass or polyamide. Polyamide plain end caps are press-fitted and used to block standard-sized profiles.
Product advantages
Quick assembly
Informations techniques
Finishing stage
Aluminium.
Polyamide.
Cupro-aluminium.
Polyamide.
Cupro-aluminium.
Produits connexes
-
Composite flat end cap – 30x30mm – for 30x30mm profile, Th.1.2
-

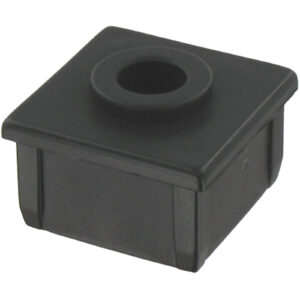

Composite drilled end cap – 30×30 mm – for 30×30 mm profile, Th.1.2 mm
-
Composite flat end cap – 40x40mm – for 40x40mm profile, Th.2
-

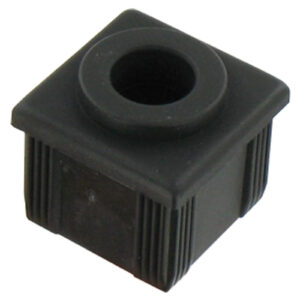

Composite drilled end cap – 40×40 mm – for 40×40 mm profile, Th.2 mm
-

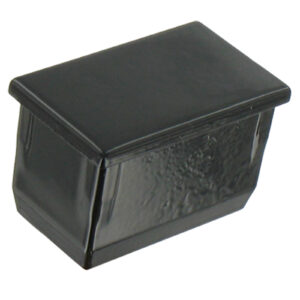

Composite flat end cap – 50x30mm – for 50x30mm profile, Th.1.8
-

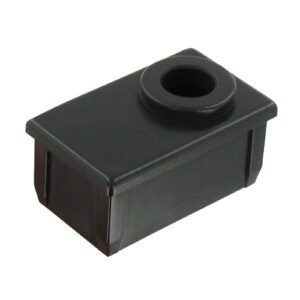

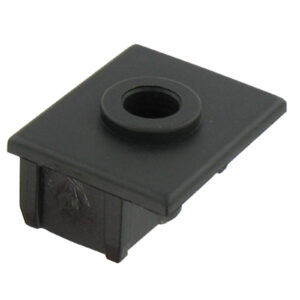

Composite drilled end cap – 50×30 mm – for 50×30 mm profile, Th.1.8 mm
-
Composite flat end cap – 50x40mm – for 50x40mm profile, Th.1.8
-
Composite drilled end cap – 50×40 mm – for 50×40 mm profile, Th.1.8 mm
-
Aluminium pre-drilled end cap – 50×30 mm – for 50×30 mm profile, Th.1.8 mm
-

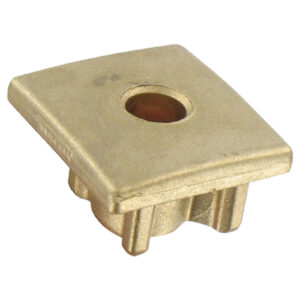

Cupro-aluminium drilled end cap – 30×30 mm – for 30×30 mm profile, Th.1.2 mm
-
Cupro-aluminium drilled end cap – 30×30 mm – for 30×30 mm profile, Th.1.5 mm
-
Cupro-aluminium drilled end cap – 40×40 mm – for 30×30 mm profile, Th. 1.2 mm, coated 40×40 mm
-
Cupro-aluminium drilled end cap – 40×40 mm – for 30×30 mm profile, Th. 1.5 mm, coated 40×40 mm
-

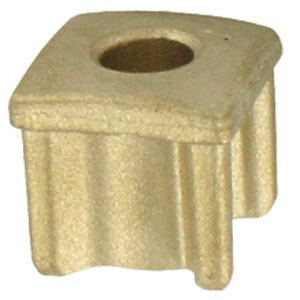

Cupro-aluminium drilled end cap – 40×40 mm – for 40×40 mm profile, Th.2 mm
-

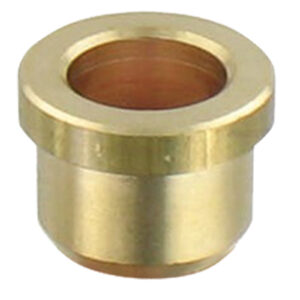

Brass ring
-

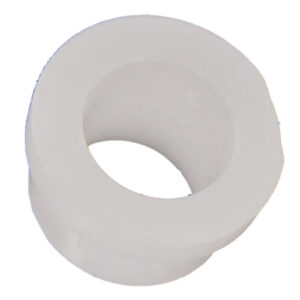

Composite ring
-

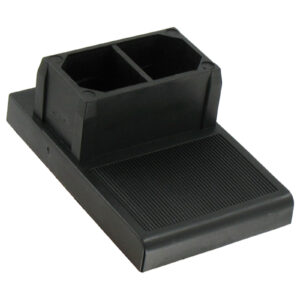

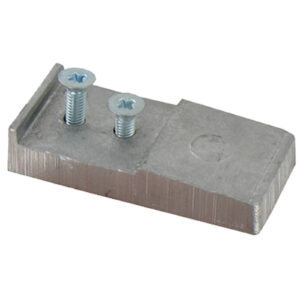

Profile gate heel – 40×40- 2mm thickness – aluminium
-

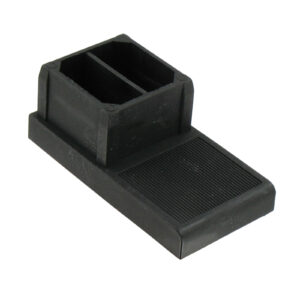

Profile gate heel-30×30- 1.2mm thickness – composite
-

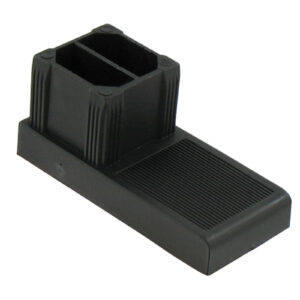

Profile gate heel – 40×40 – 2mm thickness – composite
-
Profile gate heel – 50×30 and 50×40 -1.8mm thickness – composite
