Multitex hinges

Introduction

This adjustable, stainless steel, chemically sealed opening system provides standard openings for all types of gate. Highly rigid, the different models are available with Ø12 and Ø14 pins in lengths of 25, 35 or 43 mm. Different lengths of pivot adjustment are available (35 to 60 mm, 35 to 70 mm, 45 to 80 mm), making it possible to meet the NF EN12604 standard (25mm between gate post and pillar) in a large majority of installations.

Multitex hinges

Introduction

Product advantages

Informations techniques

Finishing stage

Produits connexes

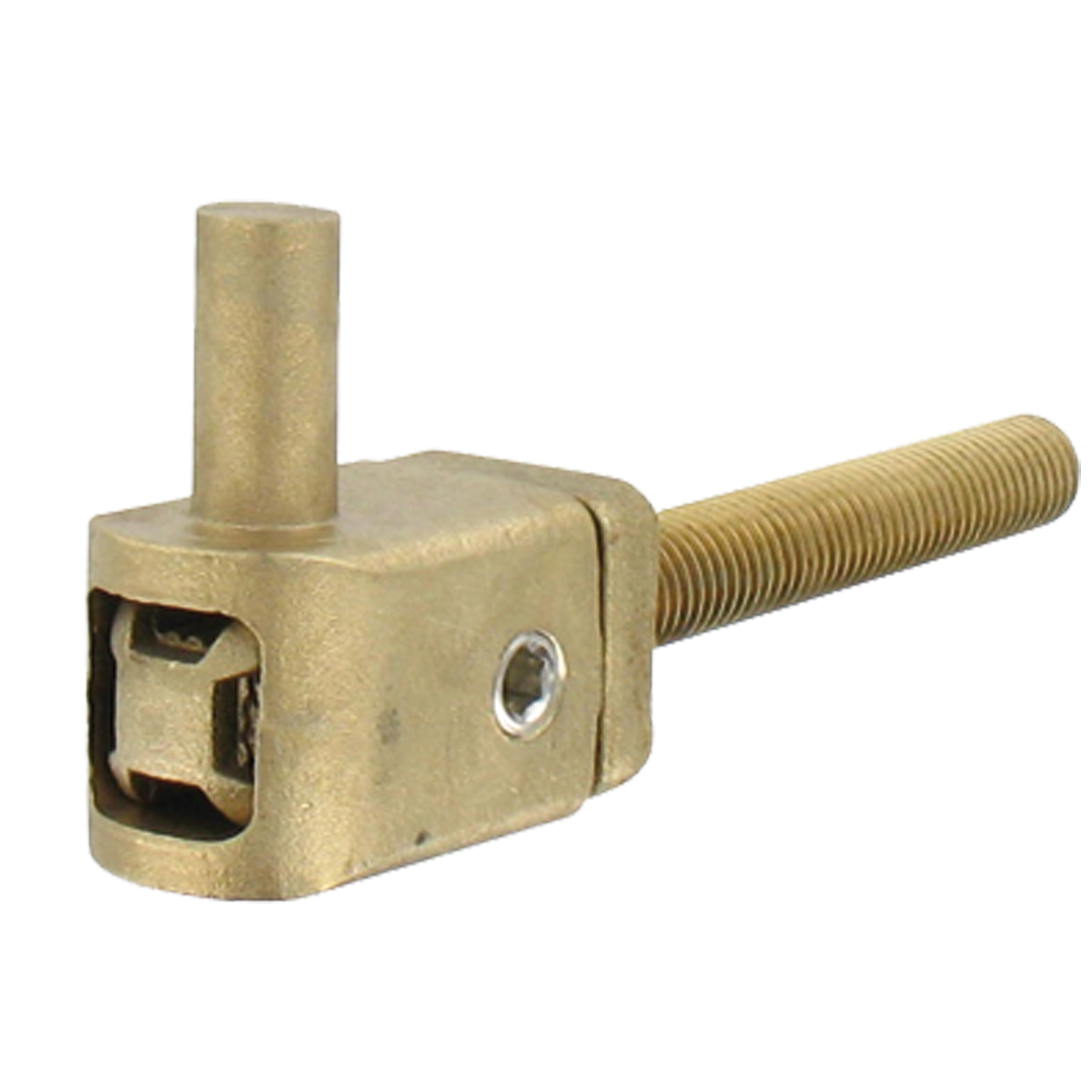

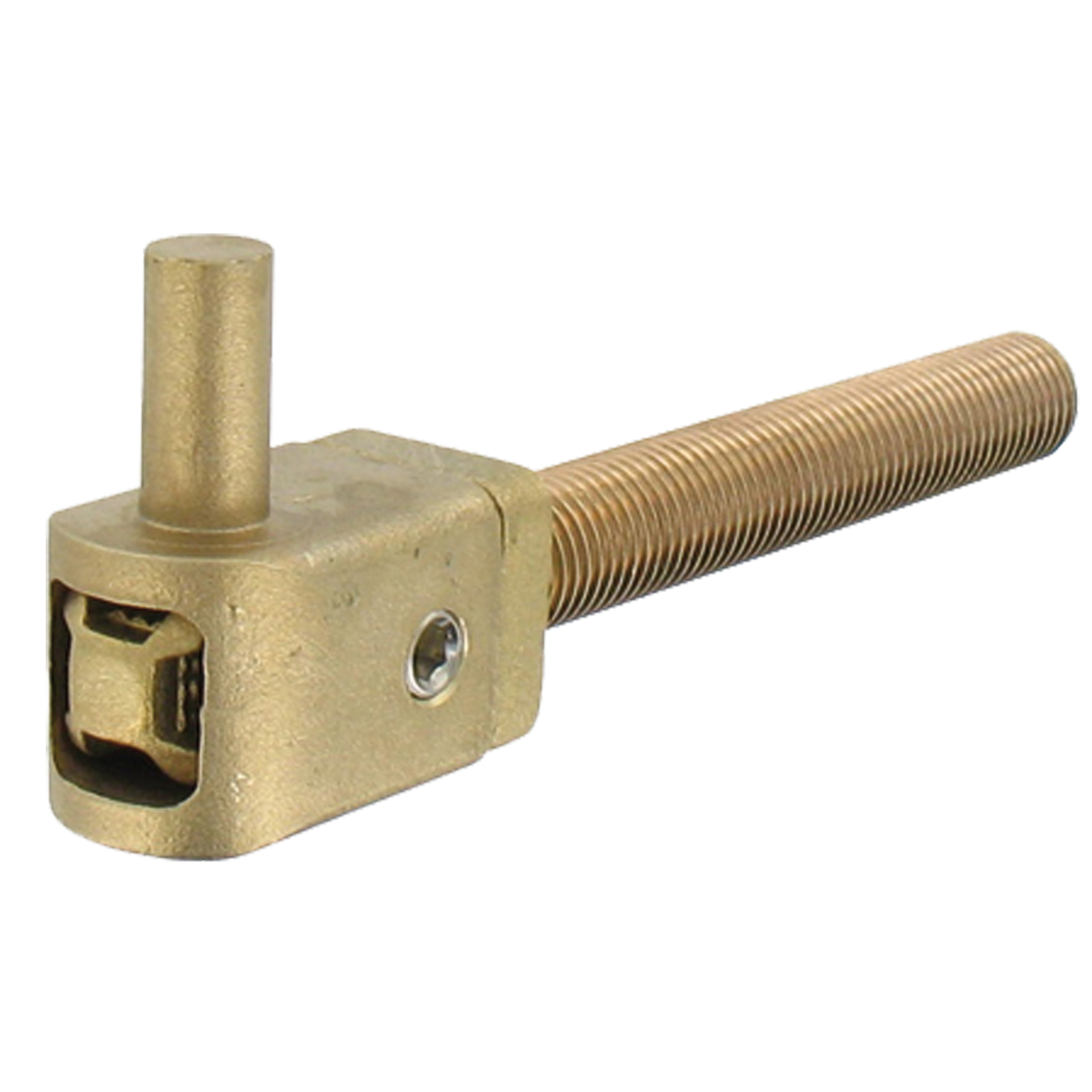

Hinge – M12 – adjustment from 35 to 60 mm – Ø12 pivot, H.25 or 35 – Multitex

Hinge – M12 – adjustment from 5 to 60 mm – Ø14 pivot, H.43 – Multitex

Hinge – M12 – adjustment from 35 to 70 mm – Ø12 pivot , H.25 – Multitex

Hinge – M12 – adjustment from 45 to 80 mm – Ø12 pivot, H.25 – Multitex

Hinge – M16 – adjustment from 35 to 60 mm – Ø12 pivot, H.25 – Multitex

Hinge – M16 – adjustment from 35 to 60 mm – Ø14 pivot, H.43 – Multitex

Hinge – M16 – adjustment from 35 to 70 mm – Ø12 pivot, H.25 – Multitex

Hinge – M16 – adjustment from 45 to 80 mm – Ø12 pivot, H.25 – Multitex
