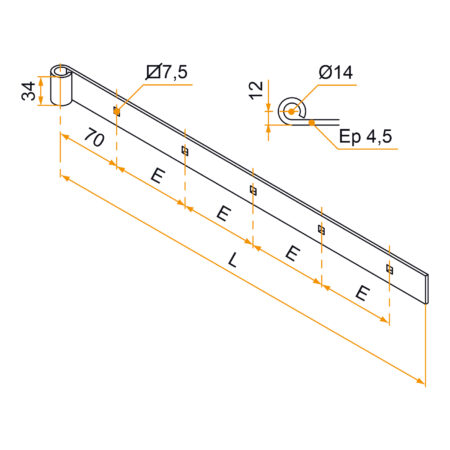

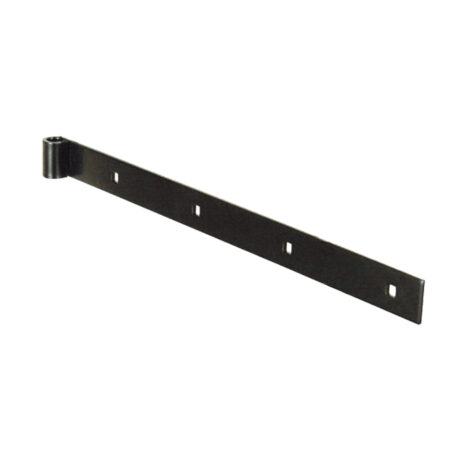

Straight strap hinge – square end – Ø14 – 34×4.5 – 7.5 mm square holes
Références
| SKU | Finishing stage | L | No. of holes | CD | Pkg | Delay (d) |
|---|---|---|---|---|---|---|
| 1PD92454 | 9005-30% | 300 | 3 | 95 | 12 | 14 |
| 1PD12108 | Zn | 300 | 3 | 95 | 12 | 21 |
| 1PD92489 | 9005-30% | 350 | 3 | 130 | 12 | 21 |
| 1PD12109 | Zn | 400 | 4 | 95 | 12 | 14 |
| 1PD92455 | 9005-30% | 400 | 4 | 95 | 12 | 14 |
| 1PD92490 | 9005-30% | 450 | 4 | 120 | 12 | 21 |
| 1PD12123 | Zn | 450 | 4 | 120 | 12 | 21 |
| 1PD92456 | 9005-30% | 500 | 5 | 95 | 12 | 14 |
| 1PD12110 | Zn | 500 | 5 | 95 | 12 | 14 |
| 1PD92491 | 9005-30% | 550 | 5 | 115 | 12 | 21 |
| 1PD92275 | 9005-30% | 600 | 6 | 95 | 12 | 14 |
| 1PD12037 | Zn | 600 | 6 | 95 | 12 | 14 |
| 1PD92492 | 9005-30% | 650 | 6 | 112 | 12 | 21 |
| 1PD92277 | 9005-30% | 700 | 7 | 95 | 12 | 14 |
| 1PD12038 | Zn | 700 | 7 | 95 | 12 | 14 |
| 1PD92279 | 9005-30% | 800 | 8 | 95 | 6 | 21 |
| 1PD12039 | Zn | 800 | 8 | 95 | 12 | 14 |
| 1PD92457 | 9005-30% | 1000 | 10 | 95 | 6 | 21 |
| 1PD12111 | Zn | 1000 | 10 | 95 | 6 | 21 |
| 1PD92458 | 9005-30% | 1200 | 12 | 95 | 6 | 21 |
| 1PD12112 | Zn | 1200 | 12 | 95 | 6 | 21 |
Information
Commentaire
Made of steel
