Références
| SKU | L | Offset | Finishing stage | Pkg | Delay (d) |
|---|---|---|---|---|---|
| 3PE92028 | 70 | 7+(8) | 9005-30% | 50 | 14 |
| 3PE91025 | 70 | 7+(8) | 9016-80% | 50 | 21 |
| 3PE92028RAL | 70 | 7+(8) |
|
1 | 21 |
| 3PE92029 | 95 | 7+(8) | 9005-30% | 50 | 14 |
| 3PE91026 | 95 | 7+(8) | 9016-80% | 50 | 14 |
| 3PE92029RAL | 95 | 7+(8) |
|
1 | 14 |
| 3PE92030 | 120 | 7+(8) | 9005-30% | 50 | 14 |
| 3PE91027 | 120 | 7+(8) | 9016-80% | 50 | 14 |
| 3PE92030RAL | 120 | 7+(8) |
|
1 | 14 |
| 3PE92024 | 95 | 30+(8) | 9005-30% | 50 | 21 |
| 3PE91021 | 95 | 30+(8) | 9016-80% | 50 | 21 |
| 3PE92024RAL | 95 | 30+(8) |
|
1 | 21 |
| 3PE92025 | 120 | 30+(8) | 9005-30% | 50 | 21 |
| 3PE91022 | 120 | 30+(8) | 9016-80% | 50 | 21 |
| 3PE92025RAL | 120 | 30+(8) |
|
1 | 21 |
| 3PE92026 | 95 | 40+ (8) | 9005-30% | 50 | 21 |
| 3PE91023 | 95 | 40+ (8) | 9016-80% | 50 | 21 |
| 3PE92026RAL | 95 | 40+ (8) |
|
1 | 21 |
| 3PE92027 | 120 | 40+ (8) | 9005-30% | 50 | 14 |
| 3PE91024 | 120 | 40+ (8) | 9016-80% | 50 | 21 |
| 3PE92027RAL | 120 | 40+ (8) |
|
1 | 21 |
Information
Astuce

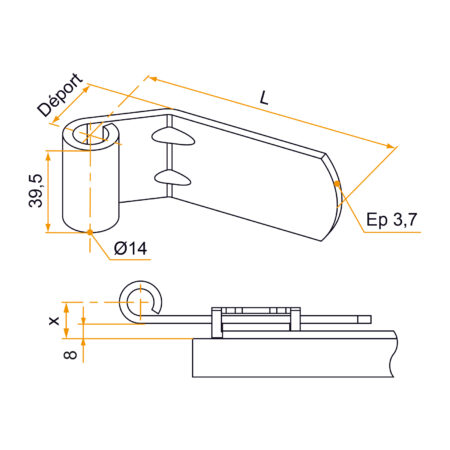

Add 8 mm to the offset of the knot to obtain the dimension of the x side
Example with knot 3PE91021, knot offset x = 30 + 8 mm = total offset compared to the shutter front = 38 mm
Example with knot 3PE91021, knot offset x = 30 + 8 mm = total offset compared to the shutter front = 38 mm
Attention
Please note that the shape of the item varies depending on the model.
Commentaire
Made of aluminium
